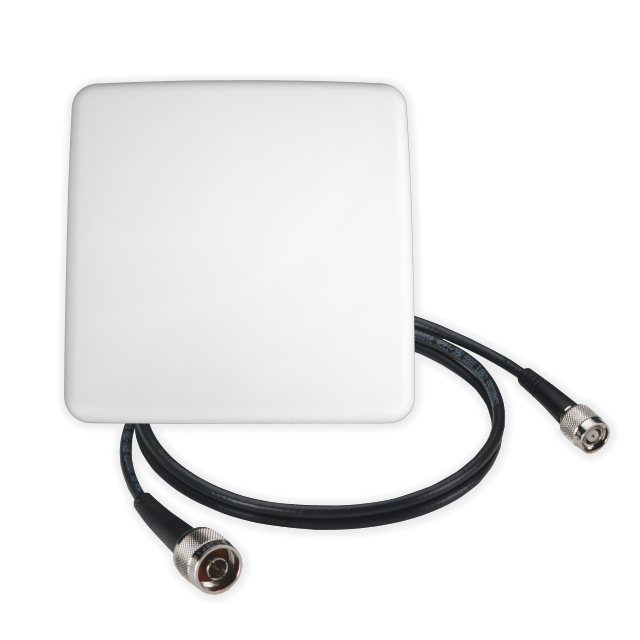

Circular Polarized 7x7 UHF RFID Far Field Antenna Kit

Product Overview
Circular Polarized 7x7 Indoor / Outdoor UHF RFID Far Field Antenna kit, includes RFID antenna, articulating wall mount and 10 ft / 3m antenna cable.

Polarization *
Cable Length *
Antenna Mount *

$99.00

Qty:

Overview
Specifications
Attachments

Circular Polarized 7x7 UHF RFID Far Field Antenna Kit

Circular Polarized 7x7 Indoor / Outdoor UHF RFID Far Field Antenna kit, includes RFID antenna, articulating wall mount and 10 ft / 3m antenna cable. The antenna mount can be upgraded to a pole mount.

Products specifications

Frequency Band	FCC (902 to 928 Mhz)
Polarization	Circular
Cable	RP-TNC Male to N Male
Gain	8±0.5 dBi
Maximum VSWR	1.5:1
Horizontal Beam Width	69°
Vertial Beam Width	69°
Front to Back Ratio	≥ 16 dB
Input Impedence	50 Ohms
Lightning Protection	DC Grounded
Connector	N Female
Radiating Element Material	Aluminum
Reflector Material	Aluminum
Radome	UABS
Color	White
Mounting Pole	30mm to 55mm
Operating Temperature	-40ºC to 60ºC
Dimensions (H x W x D)	7.5 x 7.5 x 1 in / 190 x 190 x 25mm
Weight	0.8 kgs

Product Files

CP7X7 Circular Polarized UHF Far Field RFID Antenna Datasheet

Product Description

Circular Polarized 7x7 UHF RFID Far Field Antenna Kit

Circular Polarized 7x7 Indoor / Outdoor UHF RFID Far Field Antenna kit, includes RFID antenna, articulating wall mount and 10 ft / 3m antenna cable. The antenna mount can be upgraded to a pole mount.

Additional information

Manufacturer: RFID Solutions

Products specifications

Frequency Band	FCC (902 to 928 Mhz)
Polarization	Circular
Cable	RP-TNC Male to N Male
Gain	8±0.5 dBi
Maximum VSWR	1.5:1
Horizontal Beam Width	69°
Vertial Beam Width	69°
Front to Back Ratio	≥ 16 dB
Input Impedence	50 Ohms
Lightning Protection	DC Grounded
Connector	N Female
Radiating Element Material	Aluminum
Reflector Material	Aluminum
Radome	UABS
Color	White
Mounting Pole	30mm to 55mm
Operating Temperature	-40ºC to 60ºC
Dimensions (H x W x D)	7.5 x 7.5 x 1 in / 190 x 190 x 25mm
Weight	0.8 kgs
